250 Kw Metro Shunting Hydrodynamic Transmission System

Brand Name : HTR

Model Number : YJ480FK；RC60442

Place of Origin : China

MOQ : 10pcs

Price : negotiable

Payment Terms : L/C,T/T,Western Union,Paypal

Supply Ability : 1,000 pcs/month

Delivery Time : 15-50 days, depends on QTY

Packaging Details : Carton box, Wooden case, as per requires

Product Name : 250 Kw Metro Shunting Hydrodynamic Transmission System

Maximum Efficiency : 0.87

Oil Capacity : 30 L

Zero-Speed Torque Ratio : 2.63

Shaft Drop Distance : 508 mm

Contact Now

Products Description

The 250 kW Metro Shunting Hydrodynamic Transmission System combines the YJ409FK torque converter and RC38425 gearbox, offering high efficiency (up to 89%) and strong torque at low speeds. With wide power matching and compact design, it's ideal for reliable and smooth operation in urban rail applications.

Specification

  Product Performance Reference Value
 Product Model YJ435FK
 Cycle Diameter 435 mm
 Maximum Input Speed 2400 rpm
 Matching Power Range 240-386 kW
 Zero-Speed Torque Ratio 2.63
 Nominal Torque at Zero-Speed
Operating Condition (MBg0) 492 N·m
 Nominal Torque at High Efficiency Operating Condition (MBgη) 365 N·m
 Maximum Efficiency 0.87
 Weight 330 kg

  Product Performance Reference Value
 Product Model RC38425
 Cycle Diameter 2300 N·m
 Maximum Input Speed 3000 rpm
 Matching Power Range 151-279 kW
 Gear Ratios 1st Gear: 4.342
 2nd Gear: 2.491
 3rd Gear: 1.429
 4th Gear: 0.749
 Oil Capacity 30 L
 Weight 505 kg
 Shaft Drop Distance 508 mm


Product Tags:

250 Kw hydrodynamic transmission system

metro shunting traction system

railway hydrodynamic transmission with warranty

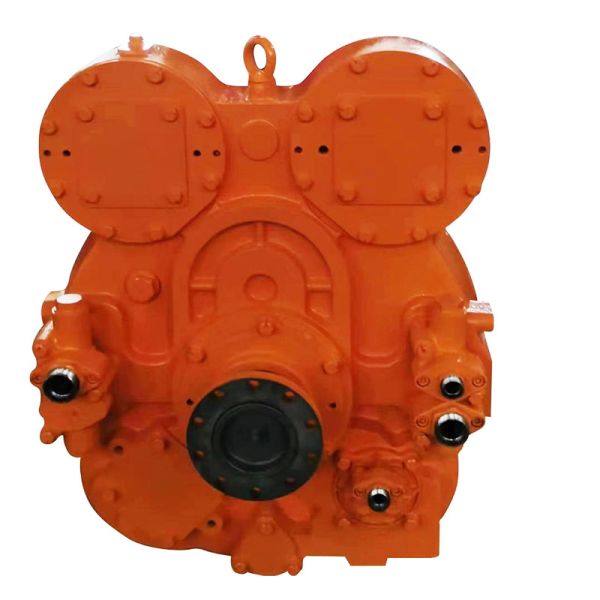

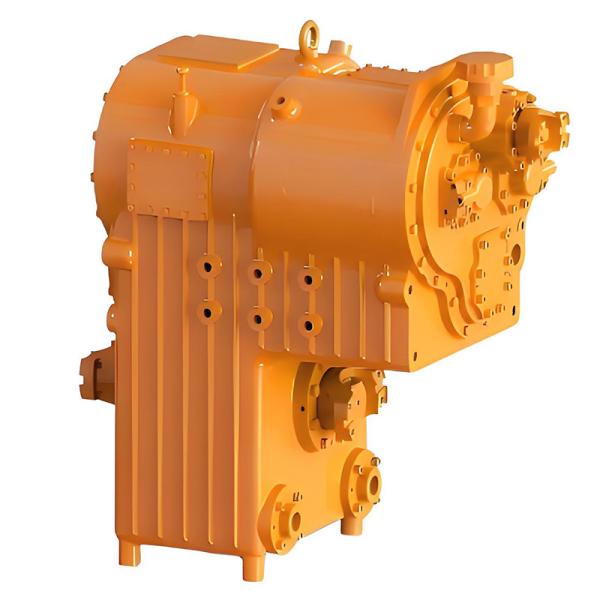

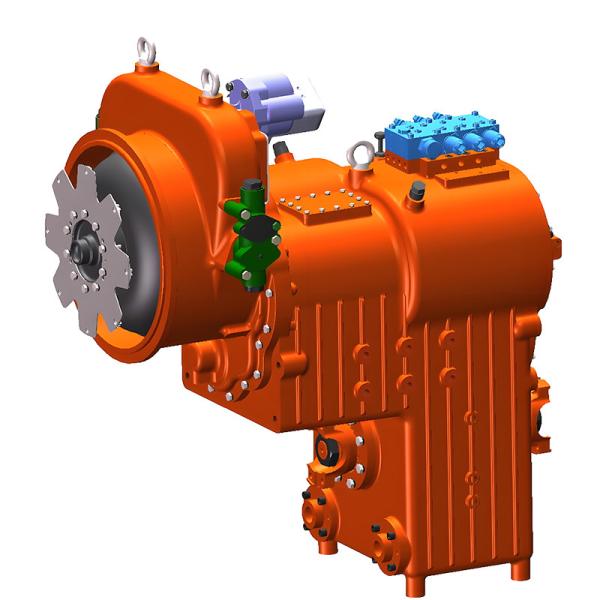

250 Kw Metro Shunting Hydrodynamic Transmission System Images
